TOFWERK


TOFWERK is making the world a cleaner place through innovative solutions for chemical analysis. Their scientists and engineers design, manufacture, and optimize high performance mass spectrometers for new applications to support researchers and industrial customers around the world. 

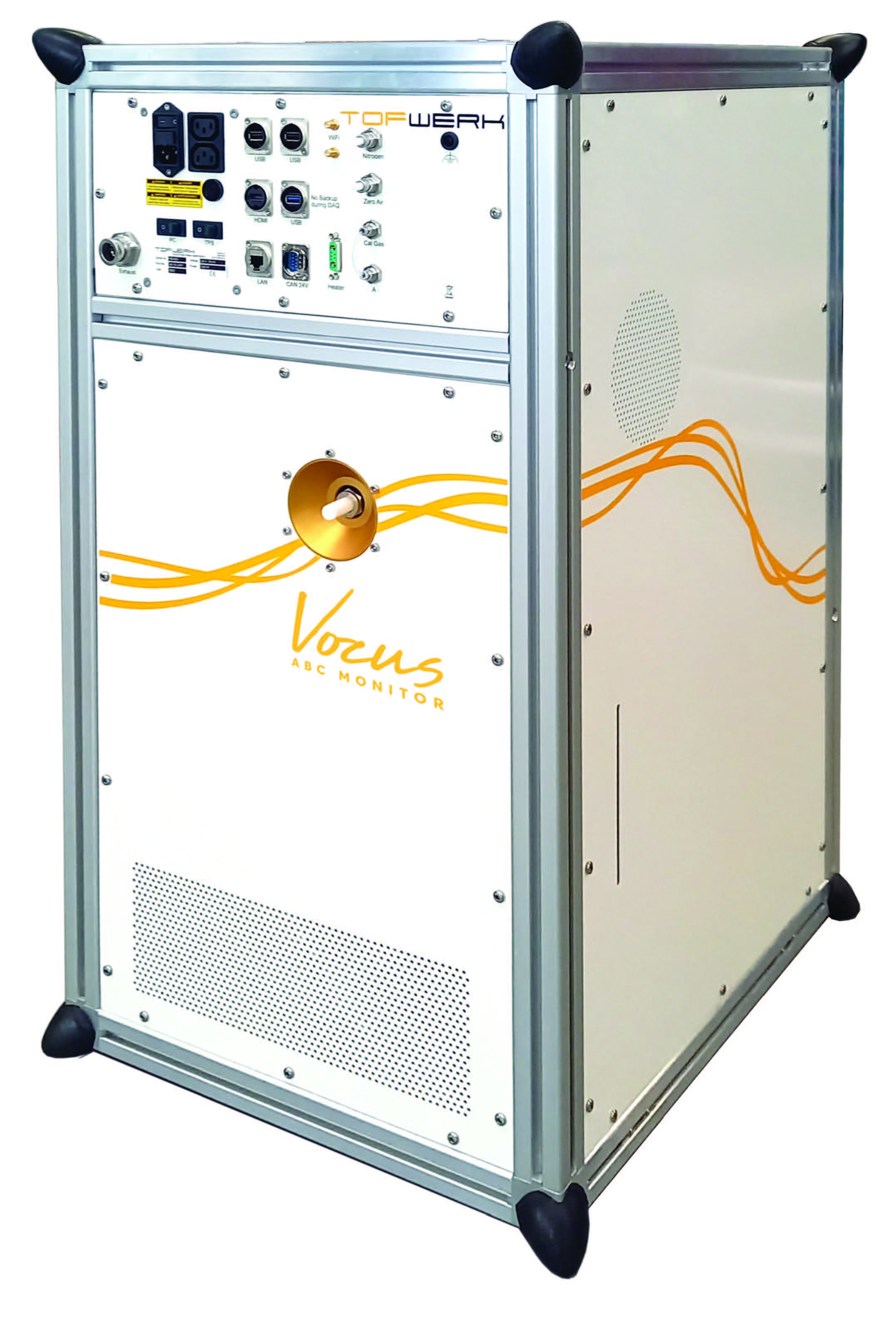

TOFWERK's chemical ionization mass spectrometer that provides sensitive, real-time detection of volatile organic and inorganic compounds (VOCs and VICS) for industrial, laboratory, and field applications.

Region Client
Asia National Yang Ming Chiao Tung University
National University of Singapore
Korea Institute of Science and Technology
Korea Electric Power Corporation
Indian Institute of Tropical Meteorology
Peking University
Tsinghua University
Beijing University of Chemical Technology
Fudan University
Shanghai Jiao Tong University
Shanghai Academy of Environmental Sciences
Institute of Geochemistry, Chinese Academy of Sciences
Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences
Environmental Protection Department, Hong Kong
University of Macao
Europe
University of Oslo, Norway
Max-Planck-Institut for Polymer research Mainz, Germany
The University of Manchester, United Kingdom
University of East Anglia, United Kingdom
Institute of research on catalysis and the environment of Lyon(IRCELYON), France
Institut national de la recherche scientifique(INRS), France
University of Helsinki, Finland
University of Bern, Switzerland
America Environmental Protection Agency
South Coast Air Quality Management District
National Oceanic and Atmospheric Administration, U.S.
University of Texas
University of Colorado
University of California, Berkeley
University of Wisconsin System
University of Toronto, Canada
National Autonomous University of Mexico



ClearFab AMC Solutions offer the most comprehensive coverage across all key AMC categories using novel fast-switching time-of-flight chemical ionization mass spectrometry. TOFWERK's AMC solutions present the highest sensitivity for AMC monitoring, provide ultra-fast measurement speed (1 Hz) and a customizable, future-proof solutions capable of addressing several different applications throughout the fab.



Product Features:

■  Ultra-fast measurements (milliseconds)
■  Dynamic process monitoring or high-throughput screening
■  Simultaneous detection of critical AMC classes
■  pptV limits of detection
■  Robust and reliable detection
■  Ideal for dynamic processes or high-throughput screening
■  Highly sensitive quantification
■  Accurate and reliable identification
■  Mobile analysis or multi-port facility monitoring without sample preparation







Technology LOD Response time (T90) Data output within a sec Tracing unknown compound Online monitoring Mobility
Hybrid Detector ppb < 5 sec X X V V
Cavity Ring Down, CRD ppb < 5 sec X X V X
GC-MS/GC-MS/Quadrupole MS sub-ppb > 30 min X X X X
ABC Monitor ppt < 100 ms V V V V
VOC Monitor ppt < 100 ms V V V V



Comprehensive coverage for the most critical AMC categories
MA MB MC VOCs
Acetic acid
HBr
HCl
HF
HNO3
Sulfuric acid
Ammonia
DMA
Morpholine
NMP
Cyclopentane
DMA
EA
Ethyl acetate
Ethyl benzene
HDMS
MeCl2
PFAS
PGME
PGMEA
Phthalates
TEB
TEOS
Benzene
Toluene
Acetone
EEP
Fluorinated
IPA
MEK
Refrigerants
This table summarizes some common AMCs measured with ClearFab AMC Monitors; however, the monitors are capable of measuring many more.

Others: More information about ClearFab Process Solutions or icpTOF, please contact with us by
e-mail: sales@woya.com.tw or phone: +886-3-5729666#800. Thank you very much.
